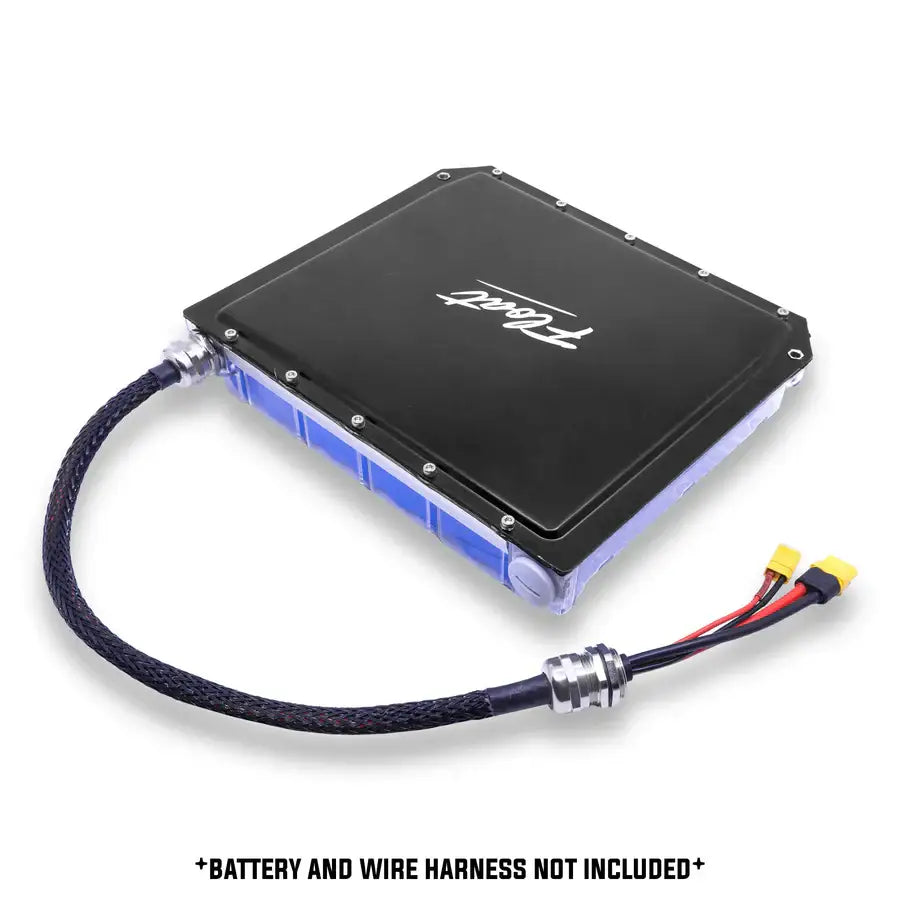

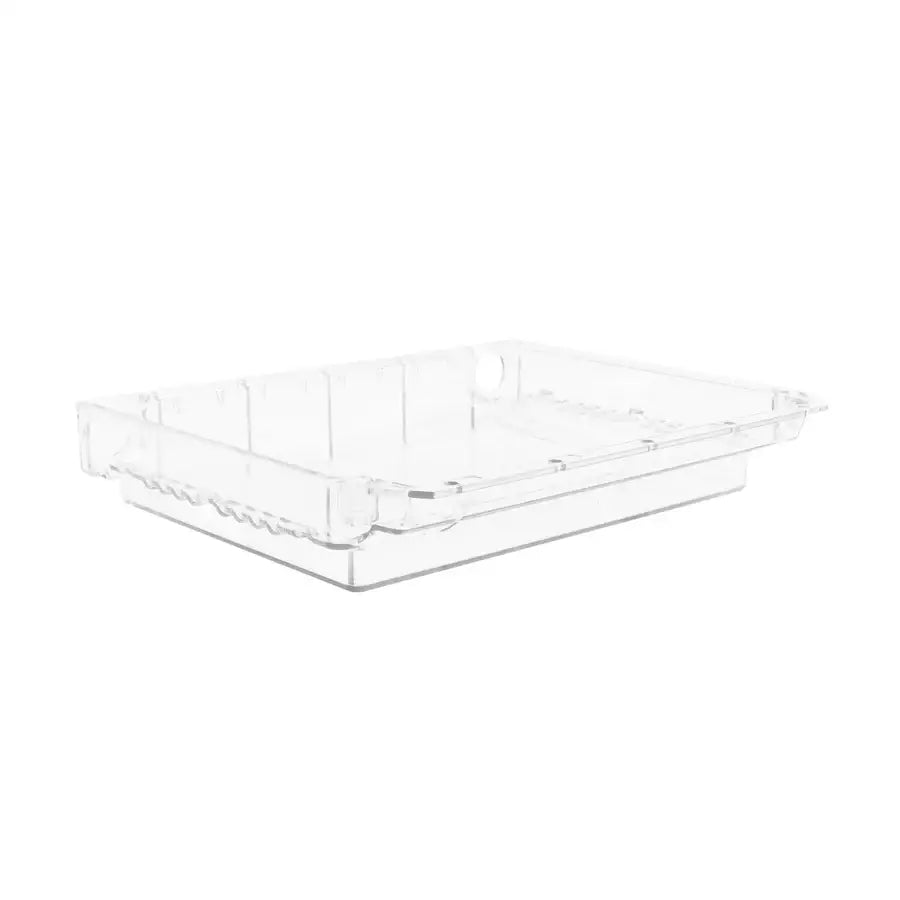

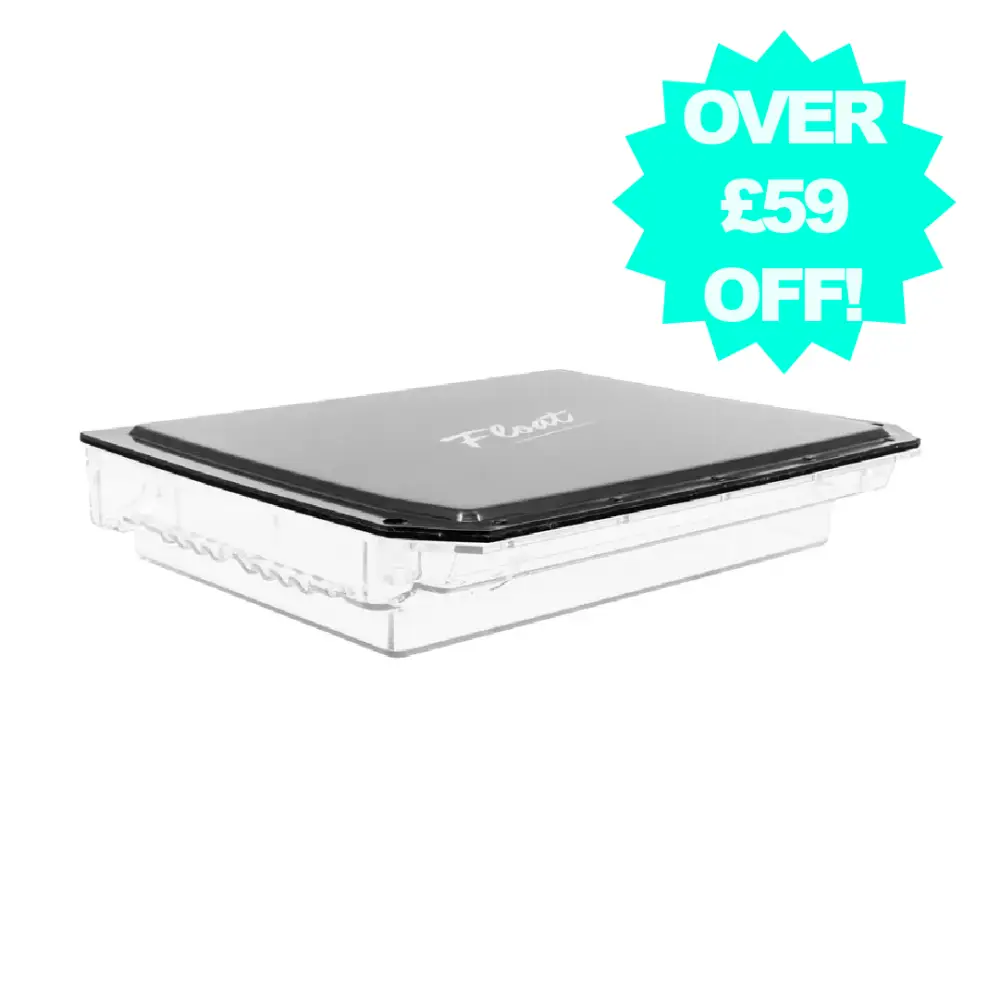

TORque Box 2 (XR)

Extended Size Battery Box replacement for Onewheel XR. 2mm more inside height and 7.5mm more length! Be sure to order the matching extended TORque B.A.N.G. Bumper!

Compatible Pack Configurations:

• 18650 20s2p
• 18650 15s3p (CBXR)
• 21700 19s2p (TORquePack)
• 21700 18s2p (ME4TPack)
• 21700 32s1p
• or Smaller Configurations

TORque Box 2 Install:

install Gland plug in spare Gland orifice

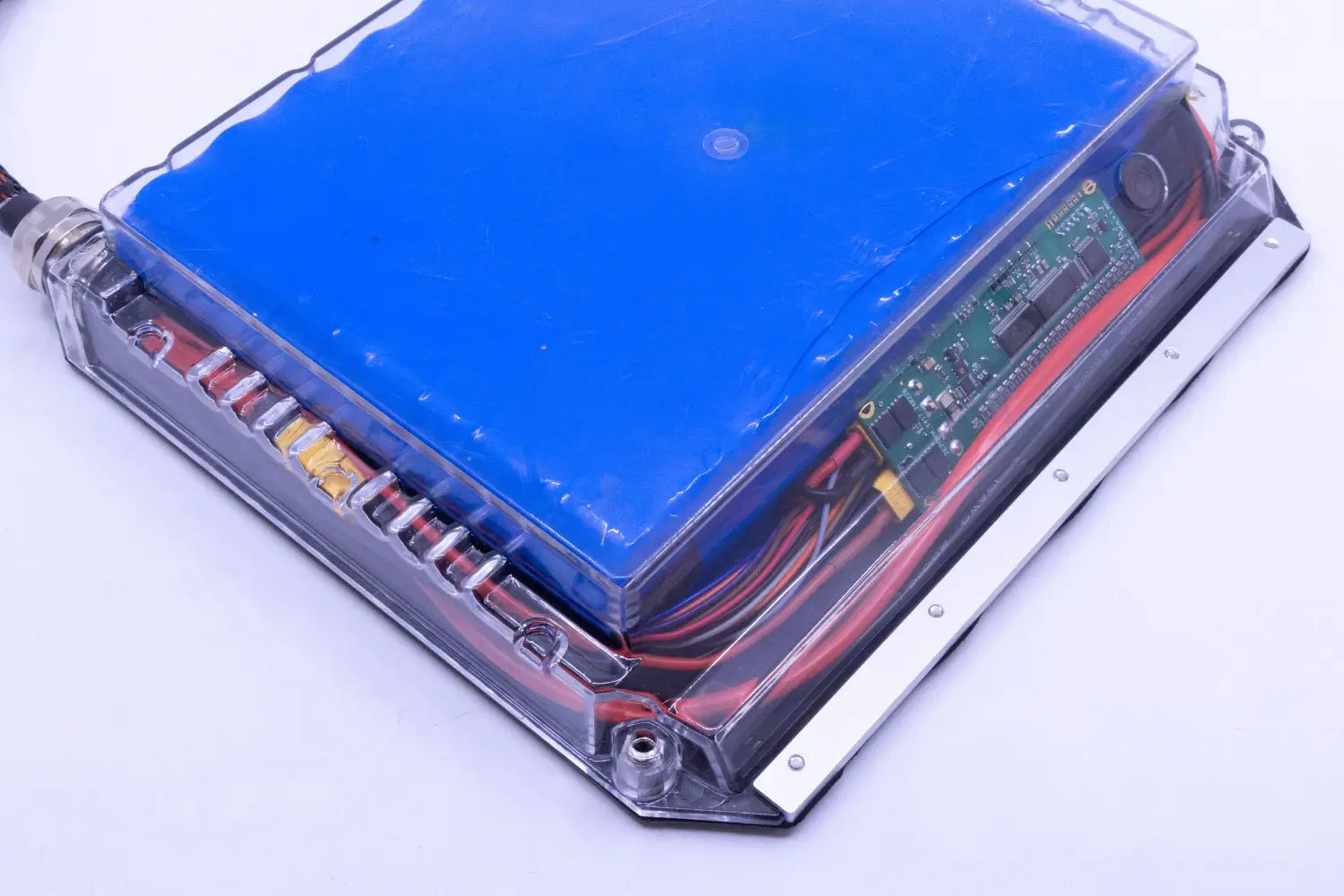

install and route all wiring out of
crush and pinch points between battery and box.

CBXR/JWXR/CBCSO:

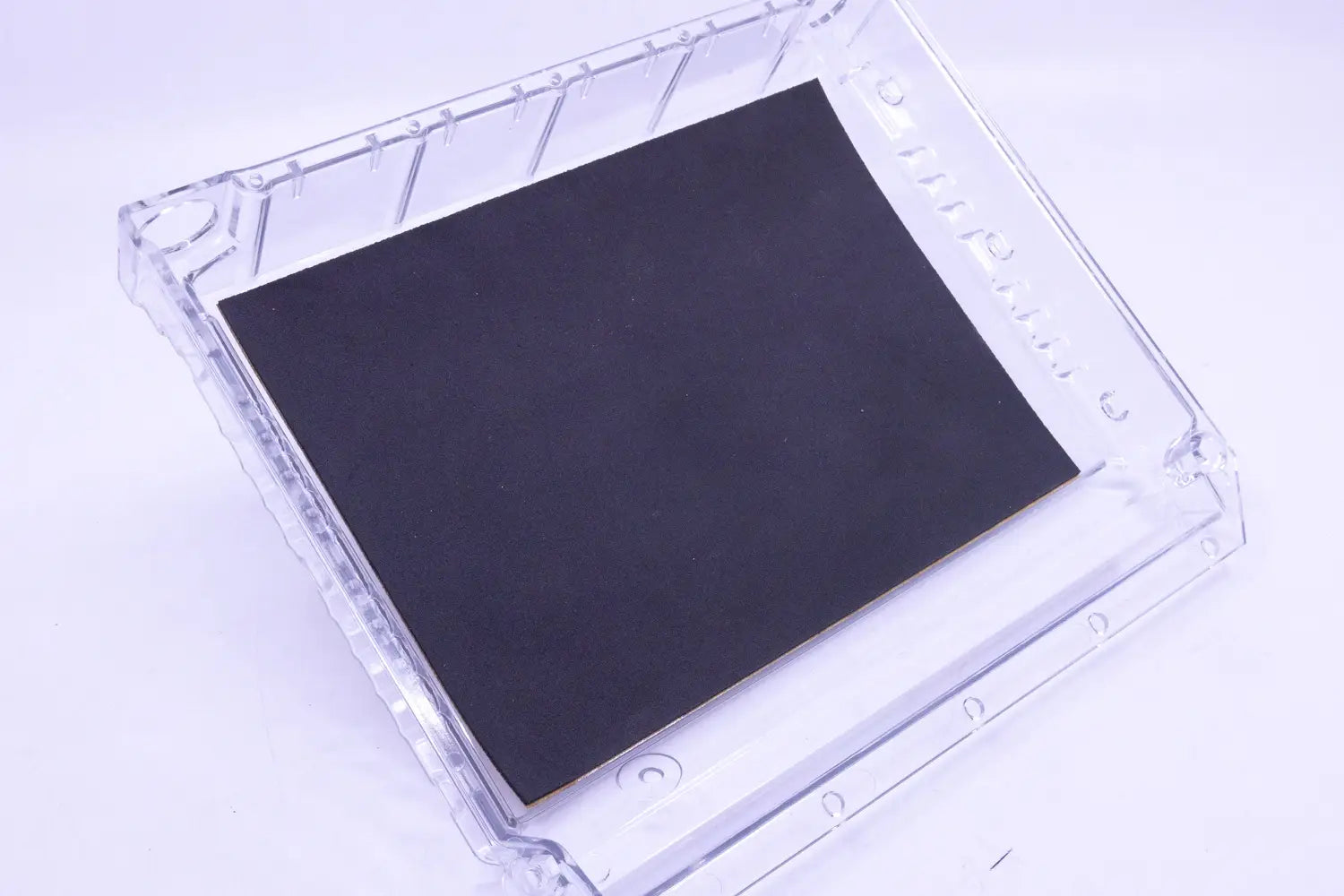

Use 2mm - 2.5mm spacer to support battery (IMPORTANT!!)
6 sheets of a4 folded in half twice is about 2.5mm

For all other packs, use of spacer will vary
between configuration and manufacturers, use according spacer

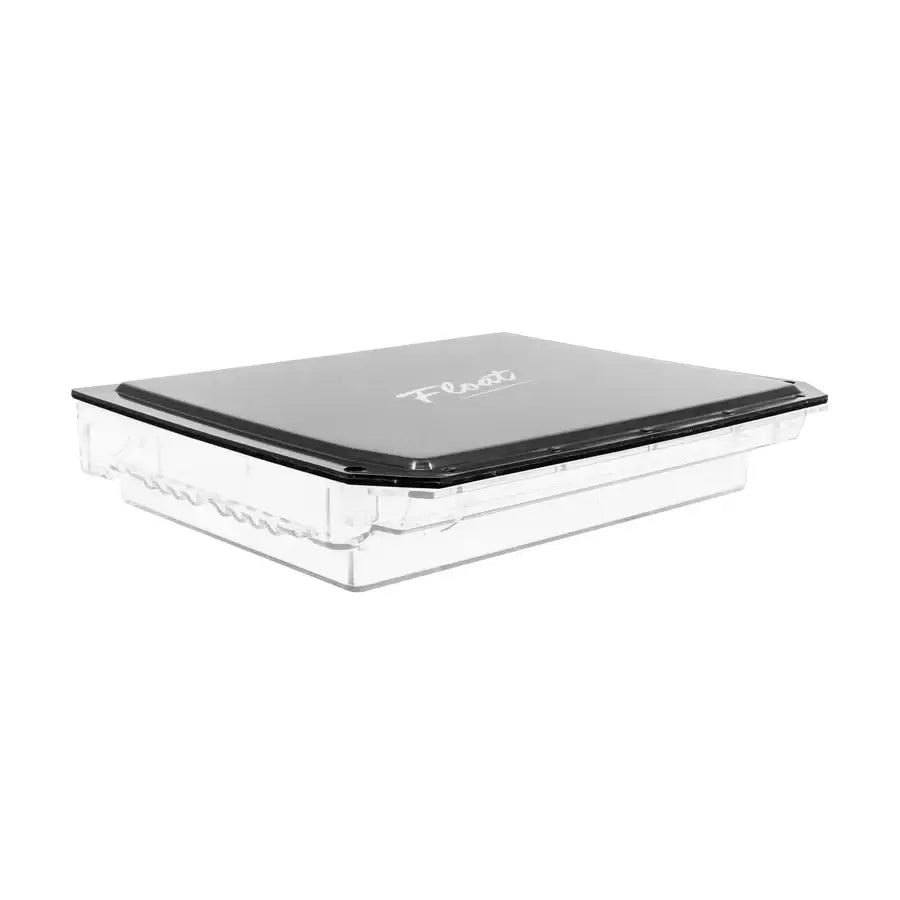

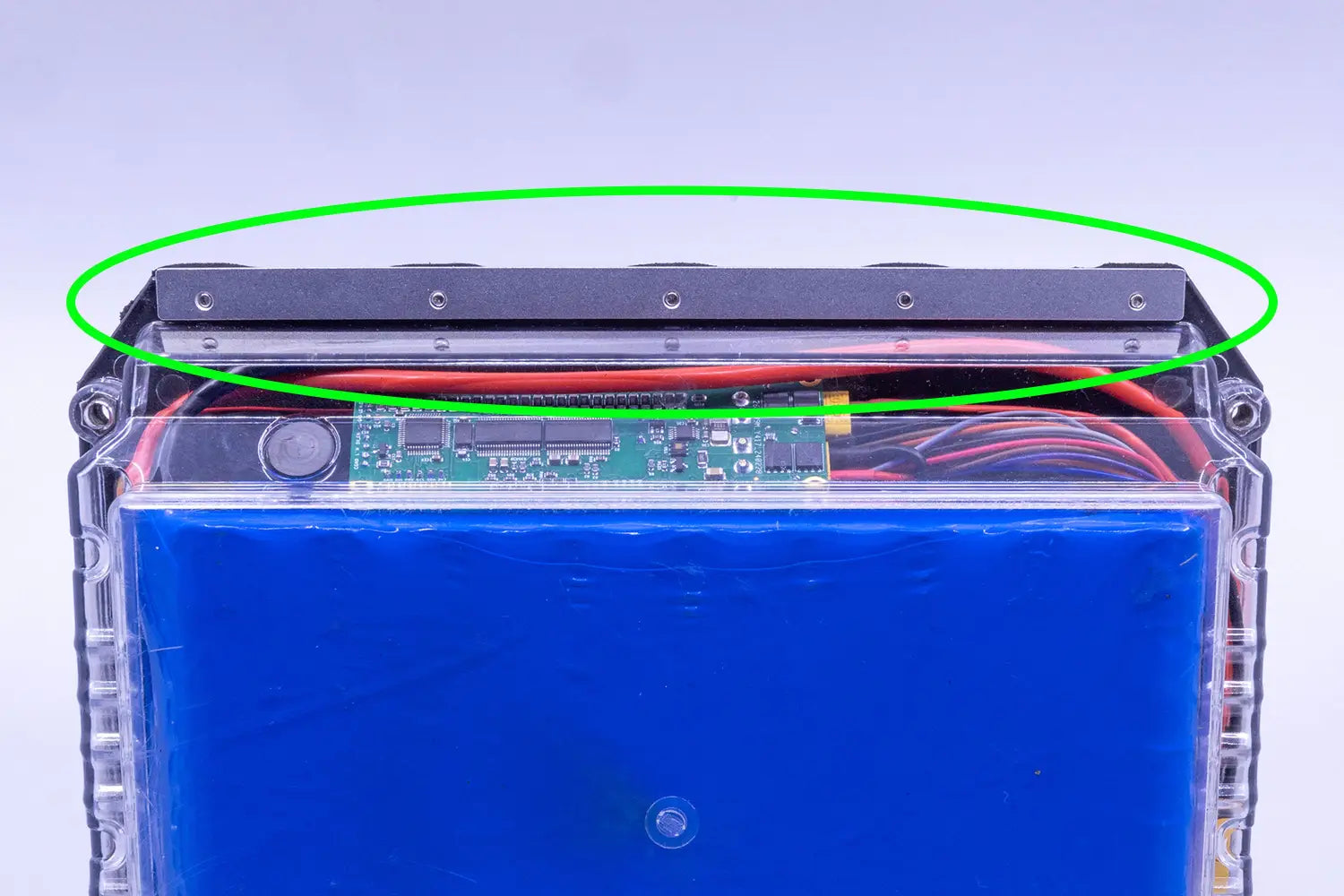

Lid install:

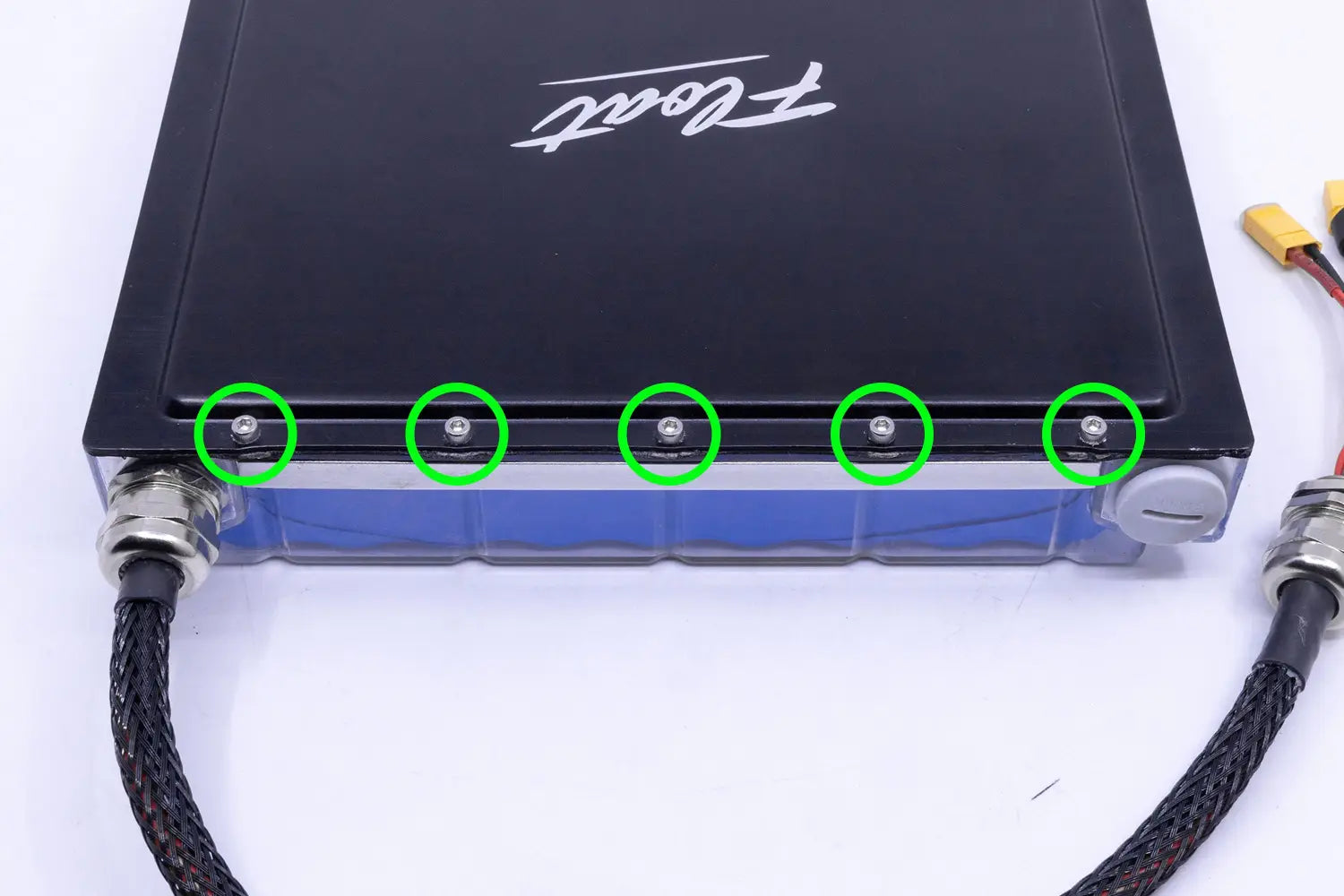

5 long screws go into tire side

5 short screws go into headlight side

make sure screws are straight in plate
put all screws into lid plates loose
then tighten all down

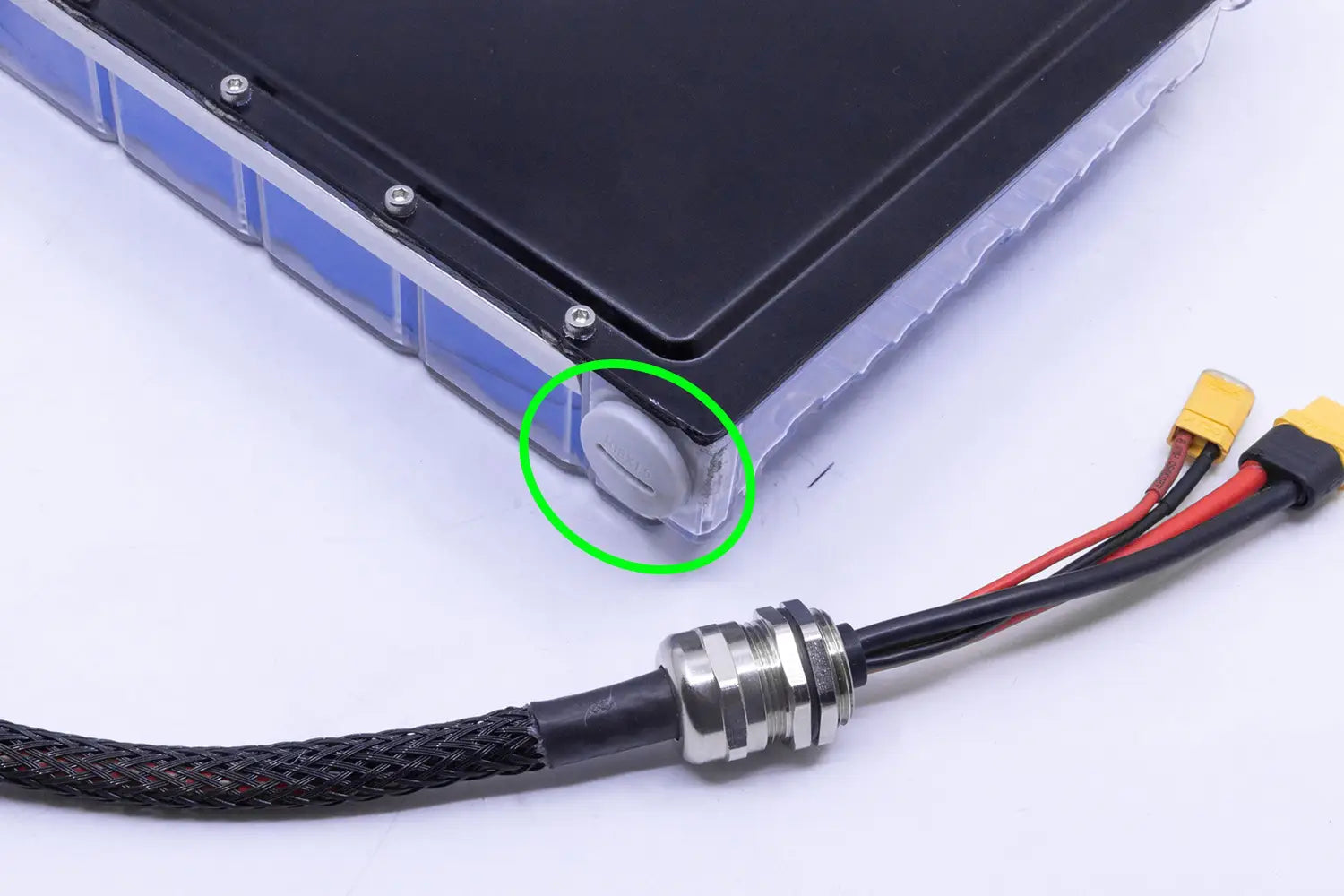

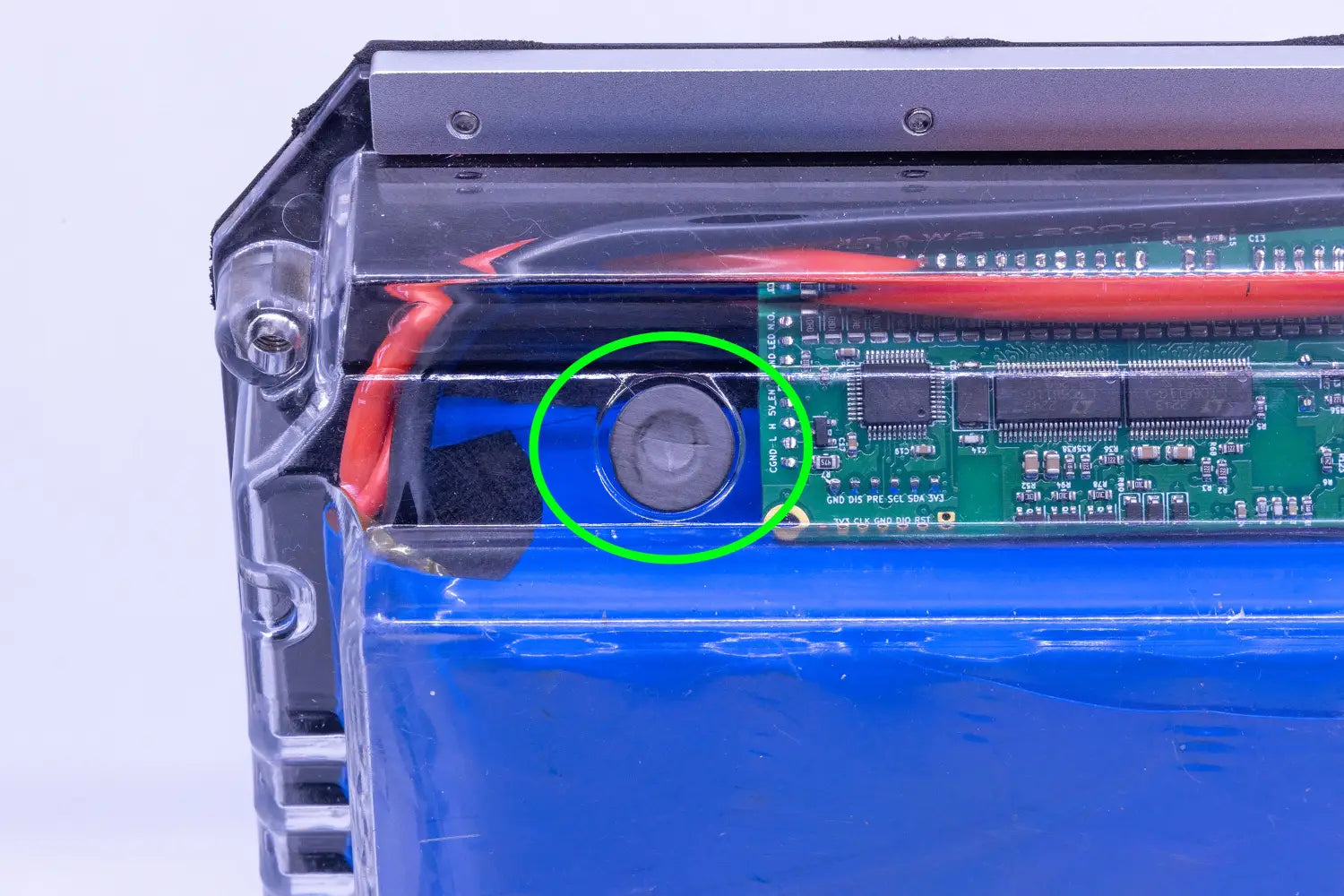

Don’t forget the vent!!
2 vents are included with each box.
 Check your assembled box for leaks,
 and install a vent over the hole.

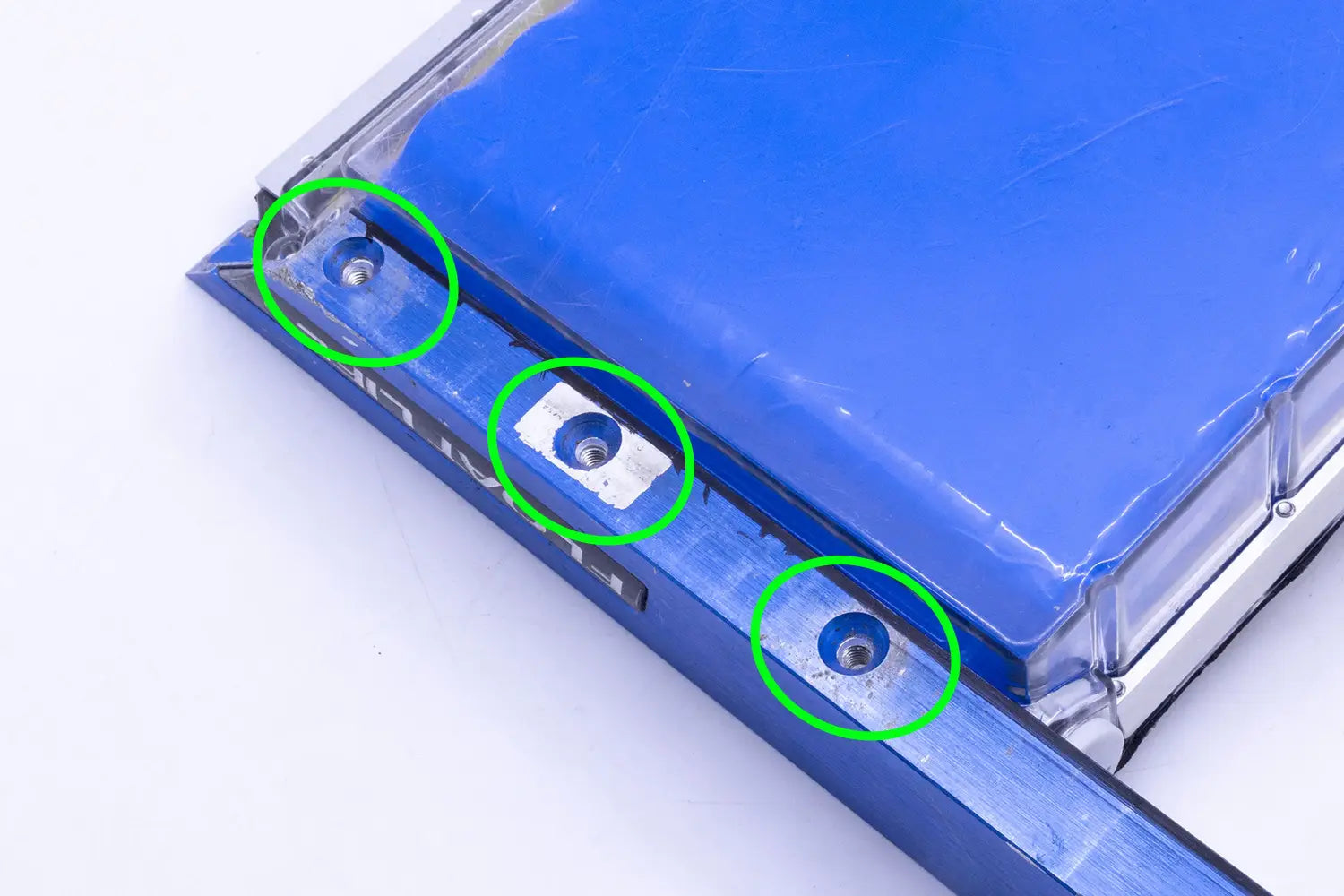

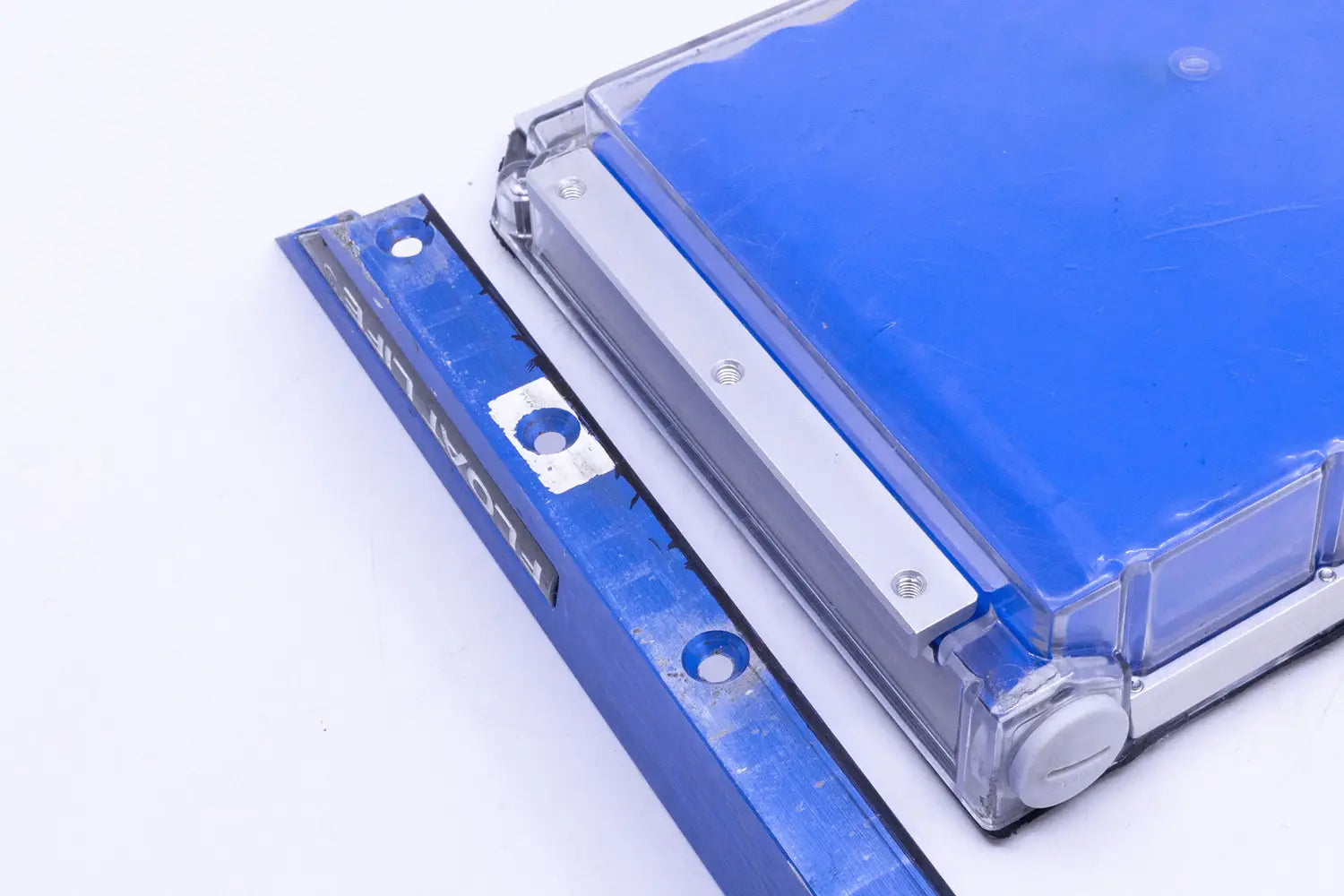

To install on rails:

sandwich the two side plates between the TORquebox and rail
then install screws accordingly

(DO NOT USE LOCTITE in / on the box. It will cause the plastic to damage or crack.)
